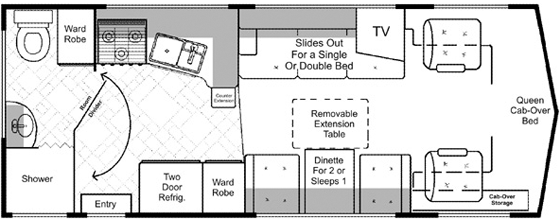

22'/23.5'/24' Front Dinette

Similar to the Front Lounge model, but substitutes a dinette table and seats for the FL's barrel chairs. (Note: pre-2010 models had dinette on curb side, couch on street side—the opposite of the arrangement shown here.)

(Overhead storage shown in gray.)

Front Dinette

2010 Vital Stats*(see "Specs" for details)

OCCC: 3,323 pounds
Sleeps 5
Fuel: 55 gallons
Fresh water: 60 gallons
Gray: 32 gallons
Black: 28 gallons
Propane: 14 gallons

* While in general Lazy Daze makes few changes from year to year, these 2010 numbers—especially CCC—may not hold true for older models. See "Changes" for more info on older LDs.
